Chilled Water – 2 Sections

 /

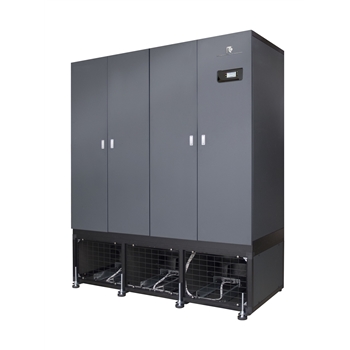

w-NEXT2 DF

Close control air-conditioners for vertical installation and cooling only, with optional heating by means of heating element, optional humidifier and dehumidifier for precise temperature and humidity control. Particularly suitable for precision air conditioning in servers and IT rooms and all technological applications in general. Units consist of two modules: a first one that contains the heat exchanger, usually placed over the floor, and a second one where EC inverter fans are placed. Downflow air supply.

Versions

  • UNDER - Downflow air supply

Features

  • Unit for installing inside or outside the room to be air-conditioned.
  • Maximum resistance to rust thanks to galvanised sheet metal structures and panels with powder-coated paint finish. The panels are lined with sound-insulating material to limit noise levels.
  • The reliability and functionality of the all parts are guaranteed by partners who are world leaders in their sector.
  • NEW EC INVERTER fans with electronic commutation in order to maximize the energy saving and reducing the noise emissions. The fan section includes: centrifugal fans with backward curved blades with wing profile, single suction and without scroll housings (Plug-fans), directly coupled to external rotor EC electric motor brushless type with integrated electronic commutated system and continuous variation of the rotation speed.
  • Standard G4 filtering section, M5, to CEN-EN 779 with average degree of separation 90.1% ASHRAE. The filter is self-extinguishing.
  • Switchboard to IEC 204-1/EN60204-1
  • Capillary Pre and After sales service.

Accessories

  • Remote user terminal
  • Electric heating coil
  • Humidifier
  • Interface electronic board
 /

w-NEXT2 K

Close control air-conditioners for vertical installation and cooling only, with optional heating by means of heating element, optional humidifier and dehumidifier for precise temperature and humidity control. Particularly suitable for precision air conditioning in servers and IT rooms and all technological applications in general. Units consist of two modules: the first housing the heat exchanger, usually placed over the floor, the second where EC inverter fans are fitted. Downflow air supply. These units are provided with modulating 2 way valve and servomotor. Unit has to be connected with an external chiller.

Versions

  • UNDER - Downflow air supply

Features

  • Unit for installing inside or outside the room to be air-conditioned.
  • Maximum resistance to rust thanks to galvanised sheet metal structures and panels with powder-coated paint finish. The panels are lined with sound-insulating material to limit noise levels.
  • The reliability and functionality of the all parts are guaranteed by partners who are world leaders in their sector.
  • NEW EC INVERTER fans with electronic commutation in order to maximize the energy saving and reducing the noise emissions. The fan section includes: centrifugal fans with backward curved blades with wing profile, single suction and without scroll housings (Plug-fans), directly coupled to external rotor EC electric motor brushless type with integrated electronic commutated system and continuous variation of the rotation speed.
  • Standard G4 filtering section, M5, to CEN-EN 779 with average degree of separation 90.1% ASHRAE. The filter is self-extinguishing.
  • Switchboard to IEC 204-1/EN60204-1
  • Capillary Pre and After sales service.

Accessories

  • Remote user terminal
  • Electric heating coil
  • Humidifier
  • Interface electronic board
 /

w-NEXT2 S

Close control air-conditioners for vertical installation and cooling only, with optional heating by means of heating element, optional humidifier and dehumidifier for precise temperature and humidity control. Particularly suitable for precision air conditioning in servers and IT rooms and all technological applications in general. Units consist of two modules: the first housing the heat exchanger, usually placed over the floor, the second where EC inverter fans are fitted. Downflow air supply. These units are provided with modulating 2 way valve and servomotor. Unit has to be connected with an external chiller.

Versions

  • UNDER - Downflow air supply

Features

  • Unit for installing inside or outside the room to be air-conditioned.
  • Maximum resistance to rust thanks to galvanised sheet metal structures and panels with powder-coated paint finish. The panels are lined with sound-insulating material to limit noise levels.
  • The reliability and functionality of the all parts are guaranteed by partners who are world leaders in their sector.
  • NEW EC INVERTER fans with electronic commutation in order to maximize the energy saving and reducing the noise emissions. The fan section includes: centrifugal fans with backward curved blades with wing profile, single suction and without scroll housings (Plug-fans), directly coupled to external rotor EC electric motor brushless type with integrated electronic commutated system and continuous variation of the rotation speed.
  • Standard G4 filtering section, M5, to CEN-EN 779 with average degree of separation 90.1% ASHRAE. The filter is self-extinguishing.
  • Switchboard to IEC 204-1/EN60204-1
  • Capillary Pre and After sales service.

Accessories

  • Remote user terminal
  • Electric heating coil
  • Humidifier
  • Interface electronic board
