Chilled Water (CW)

/

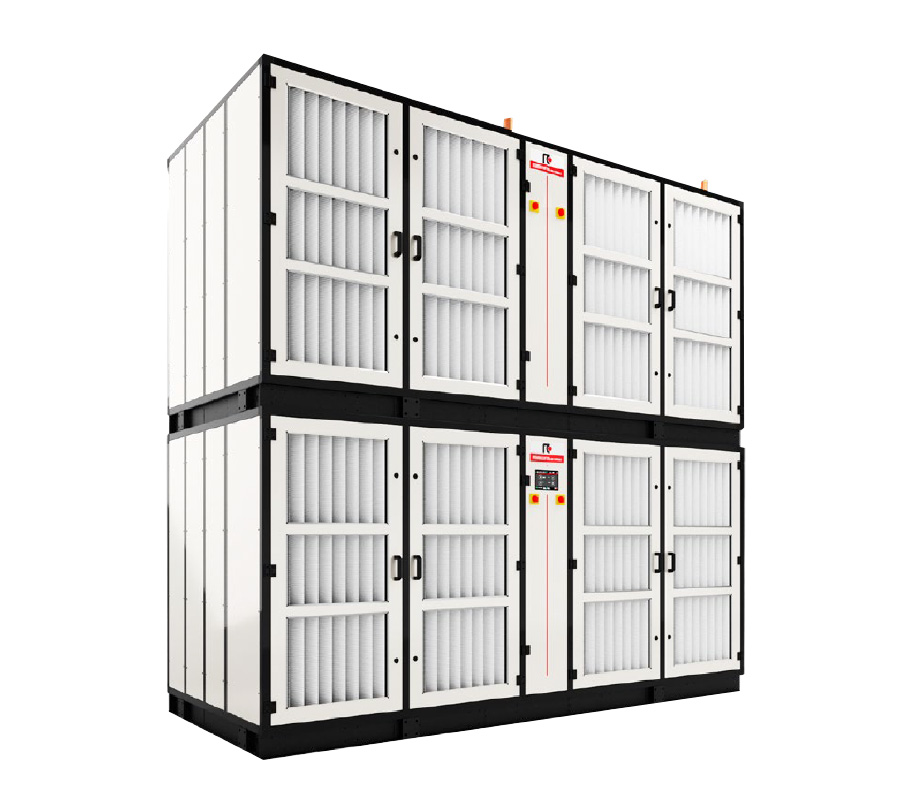

RCWALL

Water-cooled air coolers for IT Cooling with variable air flow. The range includes 12 models available in the horizontal flow version. They are optimized to handle high air flows and high outlet temperatures.

The machines are made for indoor installation. The constructive solutions and the internal lay-out allow high application flexibility and the frontal access to the main components for the inspection and routine maintenance.The installation requires electrical and hydraulic connections.

Final assembly on all machines before shipment including running test, reading and monitoring of operating parameters, alarms simulation and visual check.

Framework

  • Base plate painted with epoxy powder. Colour RAL 9005.
  • Frame consisting of aluminium profiles hot-coated with epoxy powder. Nylon knots on the corners. Colour RAL 9005.
  • Insulating panels made of two sheet metal boxes inside which there is polyurethane with an average density of 45 kg/m3. The panels guarantee thermal and acoustic insulation and air tightness.
  • External finish in RAL 9010.
  • Hinged front panels with quick release removal system.
  • Total front access for routine maintenance.
  • Removable lateral and top side panels.
  • Compartment for electrical panel on unit front for direct access to control and regulation devices.

Accessories

  • Constant pressur
  • Constant flow rate
  • Numbered wirings + UK requests
  • Network analyzer
  • Double power supply
  • Fast restart (EXTERNAL UPS)
  • Fast restart (INTERNAL UPS)
  • Serial cards: MODBUS protocol card / LON protocol card / BACNET MS/TP RS485 card / BACNET OVER IP card
  • KIPlink + COMPACT KEYBOARD
  • KIPlink +7 INCH TOUCH SCREEN
  • K200 remote keyboard
  • Water leakage detector + additional detector
  • Smoke detector
  • Fire detector
  • Air flow sensor
  • Air return T/rH probe
  • Remote T/rH probe
  • Air intake temperature control
  • Spring return 0-10V 2-way valve
  • EPIV 2-way valve
  • HPC
  • Spring return damper
  • Plenum
  • CL.0 or A1 (EN 13501-1) insulation
  • Packing with wooden crate
  • Flanged connections
  • Side connections to the unit
  • Kit for lifting with eyebolts
  • Slides for container
Brochures RCWALL
Data RCWALL
Technical Bulletin RCWALL
/

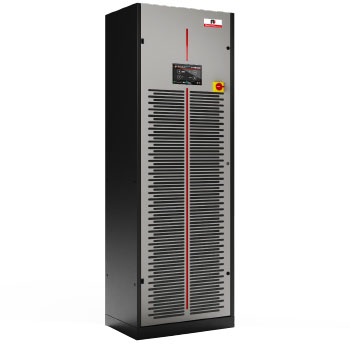

w-NEXT 3

Chilled water unit for the close control air conditioning in small Data Centre, UPS rooms, Batteries rooms, Distribution rooms and in all areas of the Data Center that need a service of air conditioning.

  • UPFLOW AIR DELIVERY (O - OVER)
  • DOWNFLOW AIR DELIVERY (U - UNDER)
  • FRONT AIR DELIVERY (DL – DISPLACEMENT

Technical solutions and the internal lay-out allow high application flexibility and frontal access to the main components for inspection and routine maintenance. The installation requires electrical and hydraulic connections.

Brochures w-NEXT3
Data book w-NEXT3 DF
Data book w-NEXT3
Product presentations w-NEXT3
Specifications w-NEXT3 DF
Specifications w-NEXT3
/

w-NEXT DF

Ductable close control units air-conditioners for vertical installation and cooling only, with optional heating by means of heating elements, optional humidifer and dehumidifier for precise temperature and humidity control. Particularly suitable for precision air conditioning in servers and IT rooms and all technological applications in general. Units fitted with EC INVERTER fans, upflow or downflow.

Versions

  • UNDER - Downflow air supply
  • OVER - Upflow air supply

Features

  • Unit for installing inside or outside the room to be air-conditioned.
  • Maximum resistance to rust thanks to galvanised sheet metal structures and panels with powder-coated paint finish. The panels are lined with sound-insulating material to limit noise levels.
  • The reliability and functionality of the all parts are guaranteed by partners who are world leaders in their sector.
  • NEW EC INVERTER fans with electronic commutation in order to maximize the energy saving and reducing the noise emissions. The fan section is contained within the machine and includes: centrifugal fans with backward curved blades with wing profile, single suction and without scroll housings (Plug-fans), directly coupled to external rotor EC electric motor brushless type with integrated electronic commutated system and continuous variation of the rotation speed.
  • Standard COARSE 60% (ISO EN 16890) filtering section, Optional ePM10 50% (ISO EN 16890) - ePM1 85% (ISO EN 16890) , to CEN-EN 779 with average degree of separation 90.1% ASHRAE. The filter is self-extinguishing.
  • Switchboard to IEC 204-1/EN60204-1
  • Capillary Pre and After sales service.

Accessories

  • Remote user terminal
  • Electric heating coil
  • Humidifier
  • Vibration isolation frame with rubber mountings
  • Air distribution plenum
  • Sound absorber plenum
  • Interface electronic board
Brochures NEXT X TYPE
Data book w-NEXT DF
Technical Bulletin w-NEXT DF
/

w-NEXT HD K

HIGH DENSITY chilled water close control unit

Versions

  • UNDER - Downflow air supply

Features

  • Unit for installing inside or outside the room to be air-conditioned.
  • Maximum resistance to rust thanks to galvanised sheet metal structures and panels with powder-coated paint finish. The panels are lined with sound-insulating material to limit noise levels.
  • The reliability and functionality of the all parts are guaranteed by partners who are world leaders in their sector.
  • NEW EC INVERTER fans with electronic commutation in order to maximize the energy saving and reducing the noise emissions. The fan section is contained within the machine and includes: centrifugal fans with backward curved blades with wing profile, single suction and without scroll housings (Plug-fans), directly coupled to external rotor EC electric motor brushless type with integrated electronic commutated system and continuous variation of the rotation speed.
  • Standard COARSE 60% (ISO EN 16890) filtering section, Optional ePM10 50% (ISO EN 16890) - ePM1 85% (ISO EN 16890) , to CEN-EN 779 with average degree of separation 90.1% ASHRAE. The filter is self-extinguishing.
  • Switchboard to IEC 204-1/EN60204-1
  • Capillary Pre and After sales service.

Accessories

  • Remote user terminal
  • Electric heating coil
  • Humidifier
  • Vibration isolation frame with rubber mountings
  • Air distribution plenum
  • Sound absorber plenum
  • Interface electronic board
Brochures NEXT X TYPE
Data book w-NEXT HD K
Technical Bulletin w-NEXT HD K
/

w-NEXT HD S

Ductable close control air-conditioners for vertical installation and cooling only, with optional heating by means of heating element, optional humidifier and dehumidifier for precise temperature and humidity control. Particularly suitable for precision air conditioning in servers and IT rooms and all technological applications in general. Units fitted with EC INVERTER fans, downflow. These units are provided with 2 way modulating valve and servomotor. Unit has to be connected with an external chiller.

Versions

  • UNDER - Downflow air supply

Features

  • Unit for installing inside or outside the room to be air-conditioned.
  • Maximum resistance to rust thanks to galvanised sheet metal structures and panels with powder-coated paint finish. The panels are lined with sound-insulating material to limit noise levels.
  • The reliability and functionality of the all parts are guaranteed by partners who are world leaders in their sector.
  • NEW EC INVERTER fans with electronic commutation in order to maximize the energy saving and reducing the noise emissions. The fan section is contained within the machine and includes: centrifugal fans with backward curved blades with wing profile, single suction and without scroll housings (Plug-fans), directly coupled to external rotor EC electric motor brushless type with integrated electronic commutated system and continuous variation of the rotation speed.
  • Standard COARSE 60% (ISO EN 16890) filtering section, Optional ePM10 50% (ISO EN 16890) - ePM1 85% (ISO EN 16890) , to CEN-EN 779 with average degree of separation 90.1% ASHRAE. The filter is self-extinguishing.
  • Switchboard to IEC 204-1/EN60204-1
  • Capillary Pre and After sales service.

Accessories

  • Remote user terminal
  • Electric heating coil
  • Humidifier
  • Vibration isolation frame with rubber mountings
  • Air distribution plenum
  • Sound absorber plenum
  • Interface electronic board
Brochures NEXT X TYPE
Data book w-NEXT HD S
Technical Bulletin w-NEXT HD S
/

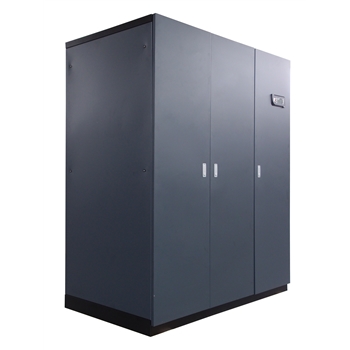

w-NEXT S

Ductable close control air-conditioners for vertical installation and cooling only, with optional heating by means of heating element, optional humidifier and dehumidifier for precise temperature and humidity control. Particularly suitable for precision air conditioning in servers and IT rooms and all technological applications in general. Units fitted withEC INVERTER fans, upflow or downflow. These units are provided with 2 way modulating valve and servomotor.Unit has to be connected with an external chiller.

Versions

  • UNDER - Downflow air supply
  • OVER - Upflow air supply

Features

  • Unit for installing inside or outside the room to be air-conditioned.
  • Maximum resistance to rust thanks to galvanised sheet metal structures and panels with powder-coated paint finish. The panels are lined with sound-insulating material to limit noise levels.
  • The reliability and functionality of the all parts are guaranteed by partners who are world leaders in their sector.
  • NEW EC INVERTER fans with electronic commutation in order to maximize the energy saving and reducing the noise emissions. The fan section is contained within the machine and includes: centrifugal fans with backward curved blades with wing profile, single suction and without scroll housings (Plug-fans), directly coupled to external rotor EC electric motor brushless type with integrated electronic commutated system and continuous variation of the rotation speed.
  • Standard COARSE 60% (ISO EN 16890) filtering section, Optional ePM10 50% (ISO EN 16890) - ePM1 85% (ISO EN 16890) , to CEN-EN 779 with average degree of separation 90.1% ASHRAE. The filter is self-extinguishing.
  • Switchboard to IEC 204-1/EN60204-1
  • Capillary Pre and After sales service.

Accessories

  • Remote user terminal
  • Electric heating coil
  • Humidifier
  • Vibration isolation frame with rubber mountings
  • Air distribution plenum
  • Sound absorber plenum
  • Interface electronic board
Brochures NEXT X TYPE
Data book w-NEXT S
Technical Bulletin w-NEXT S
